Description
Finding a quality kids dirt bike at a reasonable price has been nearly impossible until now. Trailmaster has been building dirt bikes from 60cc to 300cc for years; now their newly introduced SK110 and MK110 bring the that experience to younger riders. They feature semi automatic and full automatic transmissions. The SK110E has a Bosch Fuel Injection on elected models.

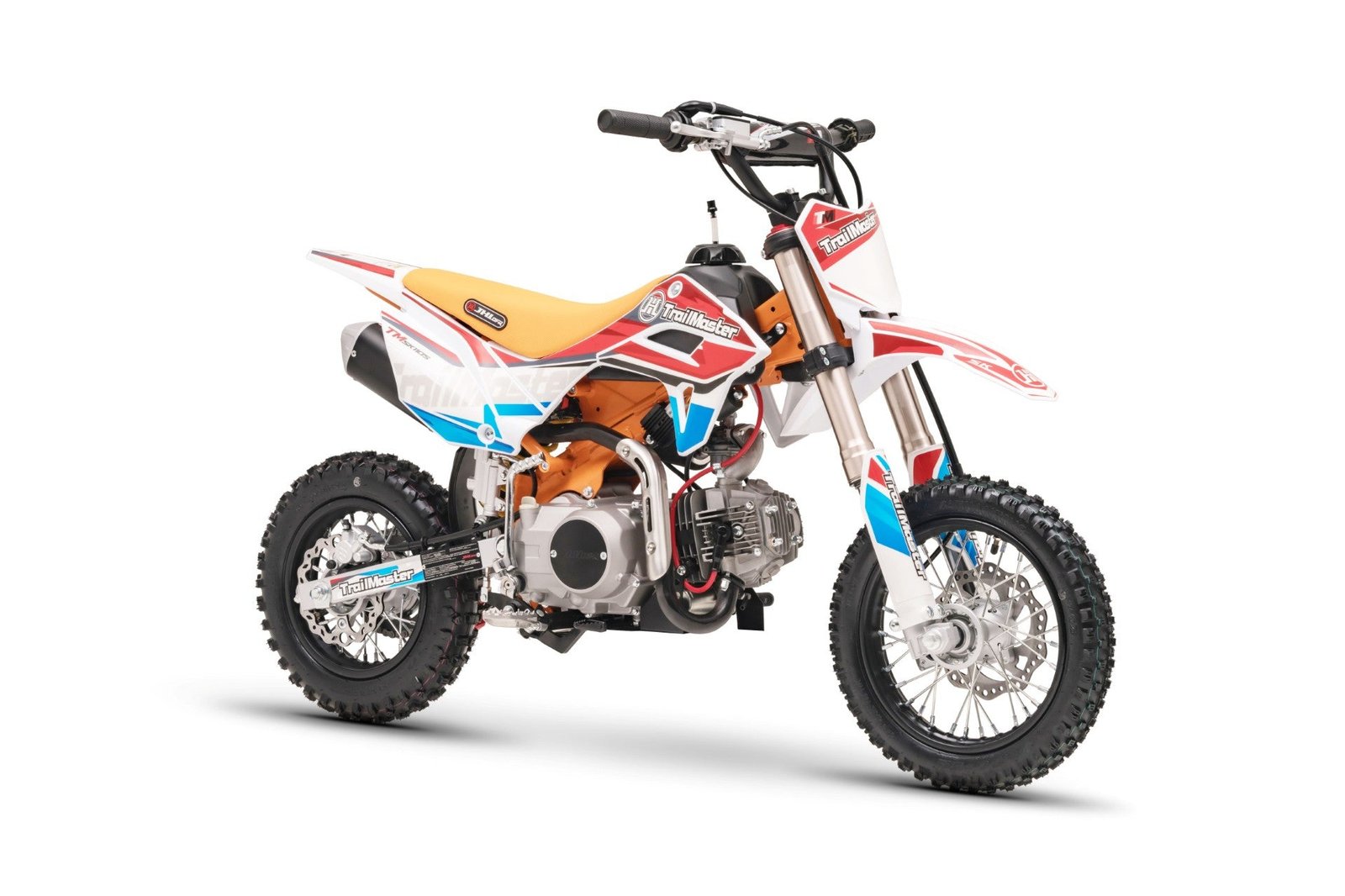

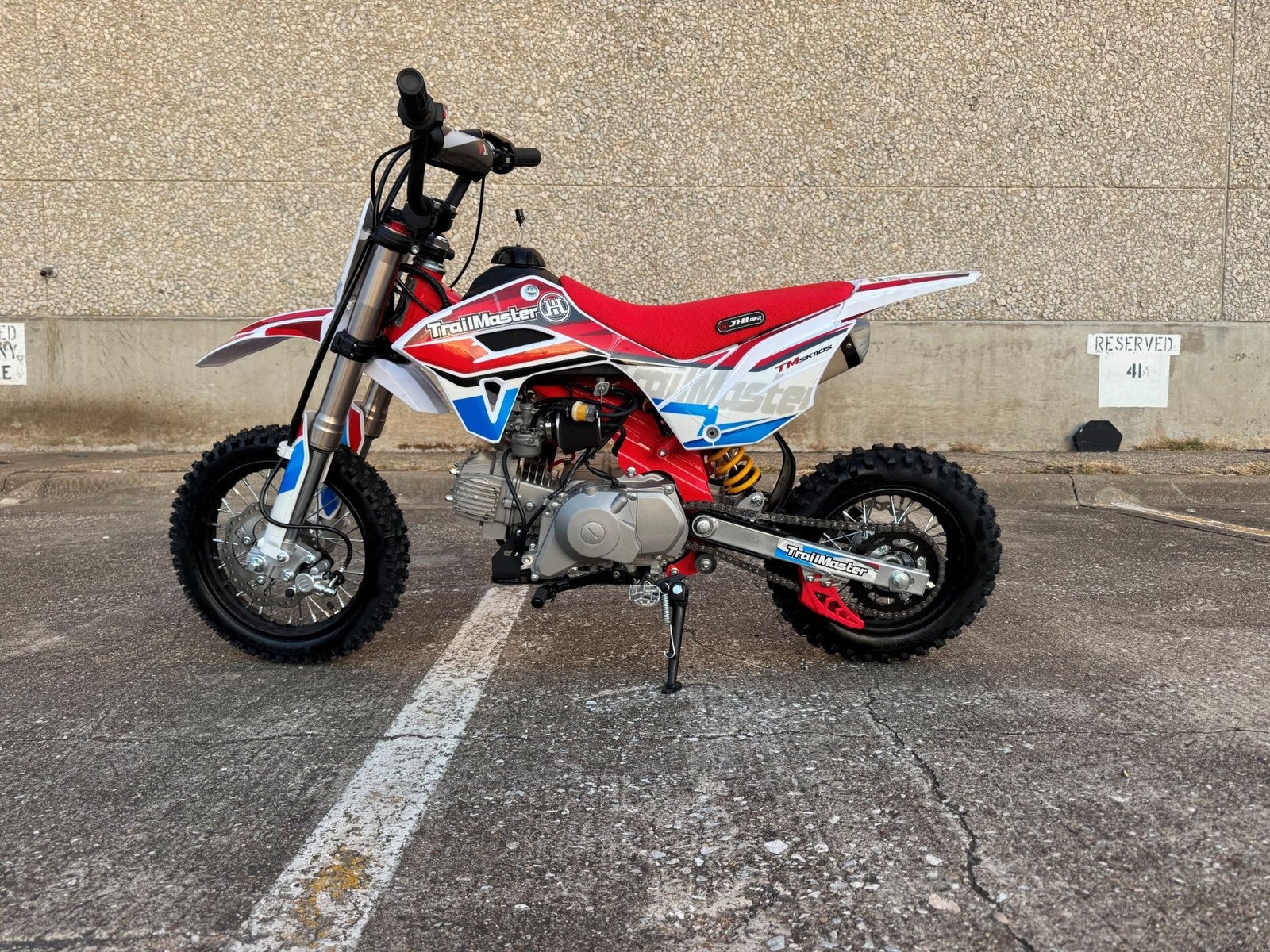

The newest in the line up is the JHL SK110S PRO. Featuring a XZ110cc air-cooled four-stroke engine. The SK110S features inverted front forks for better handling and a rear monoshock. What does this mean? Better handling of bumps and ruts enables the young rider to maintain control of the bike in rough terrain.
The transmission is a four-speed semi-automatic which means it has a centrifugal clutch. Just let off the gas, shift the foot lever, and go. This a great way to teach a young rider to work through the gears without having to engage a clutch lever. This setup is much safer than an automatic transmission.
Featuring the use of aluminum in the wheels and handlebars to keep the bike light, folding brake levers, stainless steel muffler, and front and rear vented disk brakes. This kid’s bike has all the features of the larger bikes in a compact package.

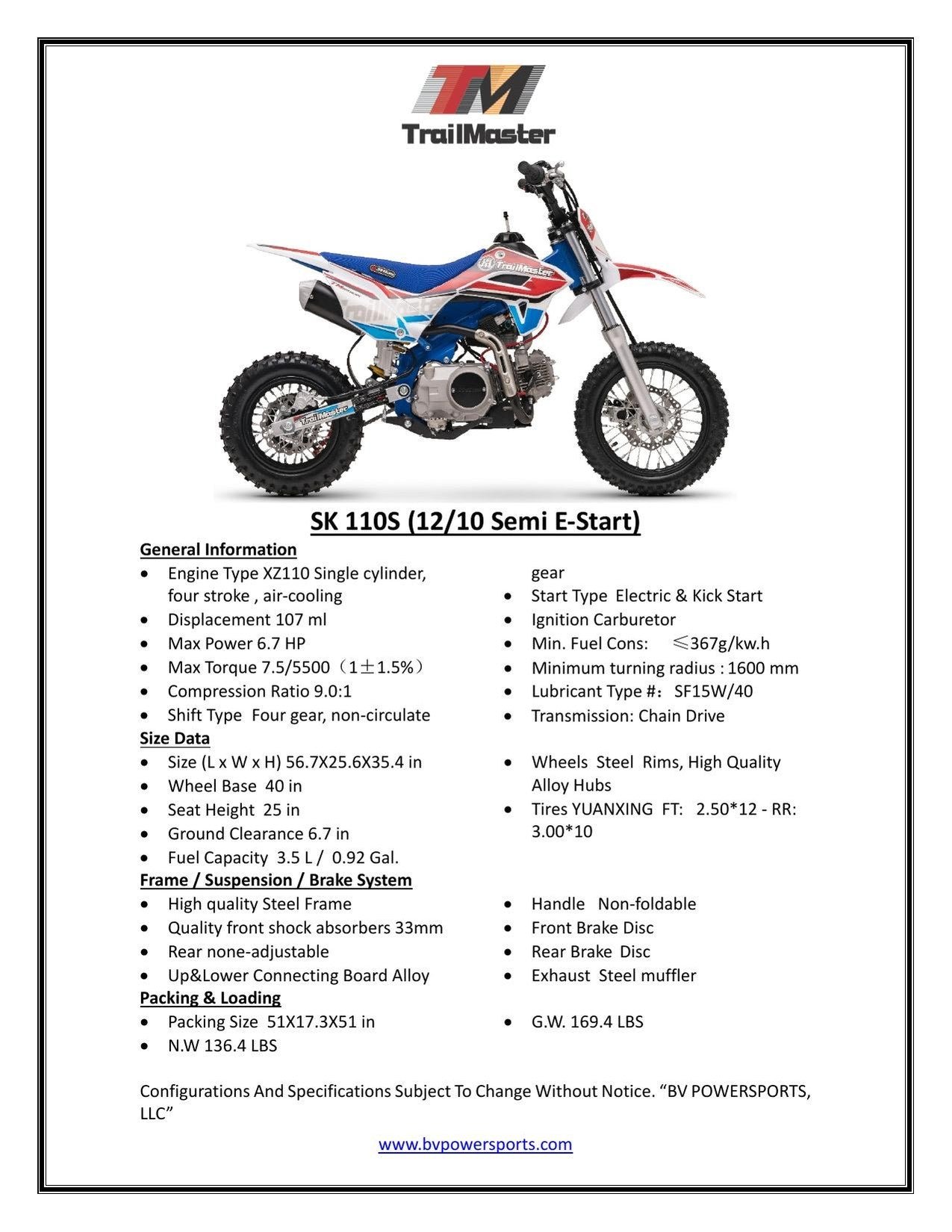

Tech Specs
| Engine Type | ZXB110 Single cylinder, four stroke, air-cooling |
| Displacement | 107 ml |
| Max Power | 5.0/8000 (1±1.5%) |
| Max Torque | 7.5/5500（1±1.5%） |
| Compression Ratio | 9.0:1 |
| Shift Type | Four gear, non-circulate gear |
| Start Type | Electric / Kick Start |
| Fuel System | Carburetor |
| Min. Fuel Consumpetion: | ≤367g/kw.h |
| Minimum turning radius : | 1600 mm |
| Lubricant Type #： | SF15W/40 |
| Transmission: | Chain Drive |
| Size Data | |
| Overall Size (L x W x H) | 56.7X25.6X35.4 in/ 1440*650*900mm |
| Wheel Base | 40 in/ 1015mm |
| Seat Height | 25 in/ 630 mm |
| Ground Clearance | 6.7 in/ 170 mm |
| Fuel Capacity | 3.5 L /0.92 Gal. |
| Wheels | SteelRims, High Quality Alloy Hubs |
| Tires | YUANXINGFT:2.50*12 – RR:3.00*10 |
| Frame/Suspension/Brake system | |
| Frame | High quality Steel Frame |
| Front Fork | Inverted front shock absorbers43/45mm |
| Rear Shock | Rear none-adjustable mono shock |
| Upper and Lower Connecting Board | Alloy |
| Handle | Non-foldable |
| Front Brake | Disc |
| Rear Brake | Disc |
| Exhaust | Steel muffler |
| Packing and Loading | |
| Packing Size | 51X17.3X51 in/ 1290*440*675mm |
| N.W | 136.4 LBS/62 KGS |
| G.W | 169.4 LBS/77 KGS |
Documents
Assemble Video
