Description
ALL NEW from RPS

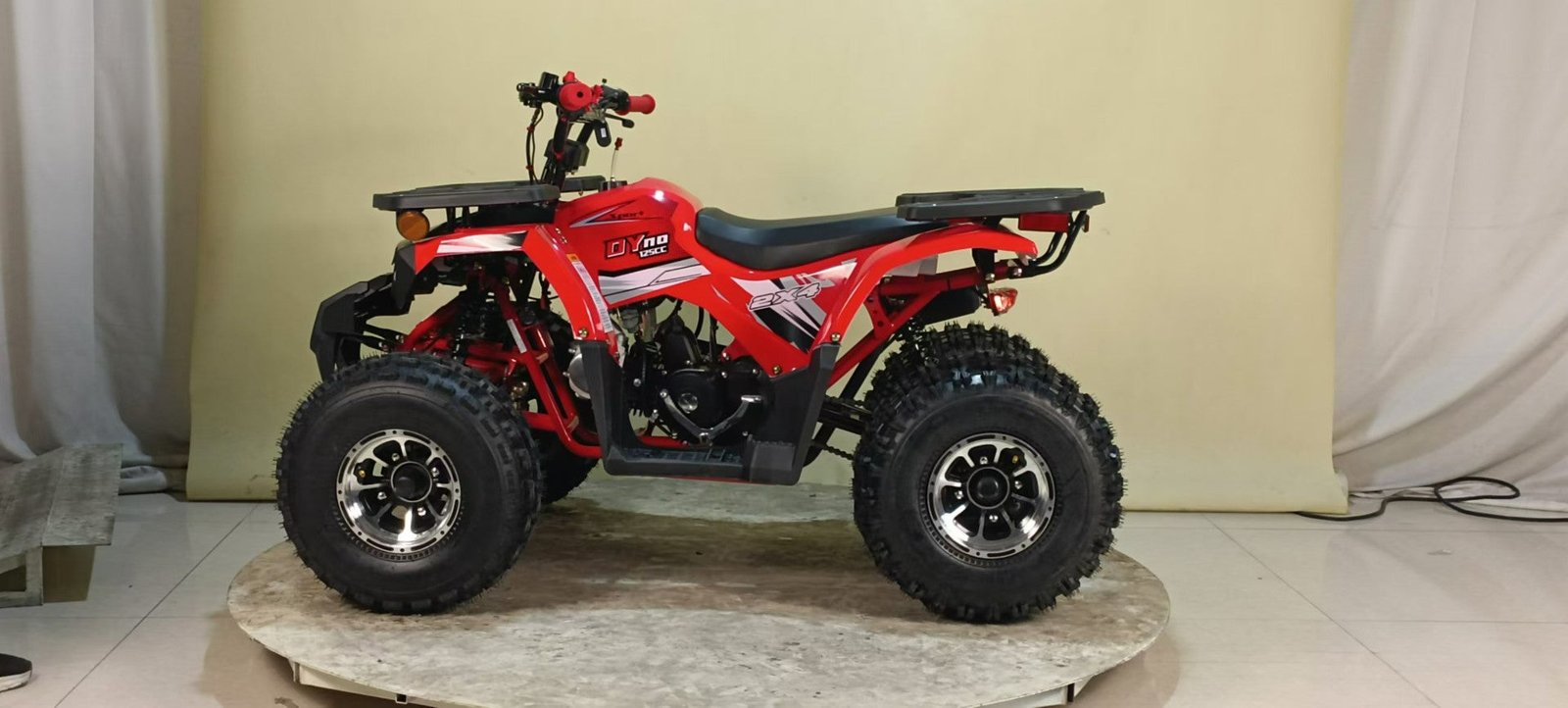

The RPS Dyno 125 features an automatic transmission with reverse. The smooth CVT transmission features a foot shifter and smooth power delivery. The four-stroke air-cooled engine is perfect for the mid-size frame and youth rider moving up from the small 60 to 110 cc. A foot shifter makes it easy for young riders to shift into neutral or reverse. It has a bigger frame than the popular RPS Dinosaur 110 and features a PZ20 carb. The larger mid-size frame is perfect for smaller older or bigger kids with intermediate skills. This upgraded mid-size features front and rear hydraulic brakes. The suspension is dual A-arm, coil over shocks, and a mono shock rear end.
Max load of 165 lbs.
Large front and rear utility racks are standard with plenty of tie-down points for gear. Includes a Remote Stop for safety and a Speed Limiter so parents stay in complete control. Electric start.
| ENGINE | |
| Type | 125cc, single cylinder, air cooled, 4-stroke, |
| Bore x Stroke | 2.063” X2.19mm |
| Compression Ratio | 9.1:1 |
| Carburetor | PZ20 |
| Ignition | CDI |
| Starting Time | Electric start |
| Transmission | R-N-F |
| Drive Train | Chain Drive |
| Max. Torque | 8.0N.m/5500r/min |
| Max. Power | 5.3kw/7500r/min |
| CHASSIS | |
| Suspension/Front | Independent double swing arm |
| Suspension/Rear | Single swing arm |
| Brakes/Front | Drum |
| Brakes/Rear | Hydraulic disc |
| Tires/Front-Rim | 19x 7-8 radial/Alloy rim |
| Tires/Rear-Rim | 18×9.5-8radial/Alloy rim |
| DIMENSIONS | |
| L x W x H | 59.84”X37”X38.58” |
| Seat Height | 26.77” |
| Wheelbase | 40.16” |
| Ground Clearance | 5.32” |
| Front Wheel Track | 29.92” |
| Rear Wheel Track | 26.38” |
| Battery | 12V/5Ah |
| Fuel Capacity | 0.528gal |
| Net Weight | 242.55lbs |
| Max. Load | 165.38lbs |
| Package Size | 57.8”X30.3”X25.6” |
| OTHER | |
| Vehile Top Speed Without Governor | ≤29.83mph |
| Top Speed Per CPSC Requirment | ≤15mph |
| Fuel Consumption | 2.6L/100km |
| Starting Time | ≤10s |
| Brake distance | 30km/h≤6.5m |
| Remote Control | Yes |
| Headlight | LED |
