Description

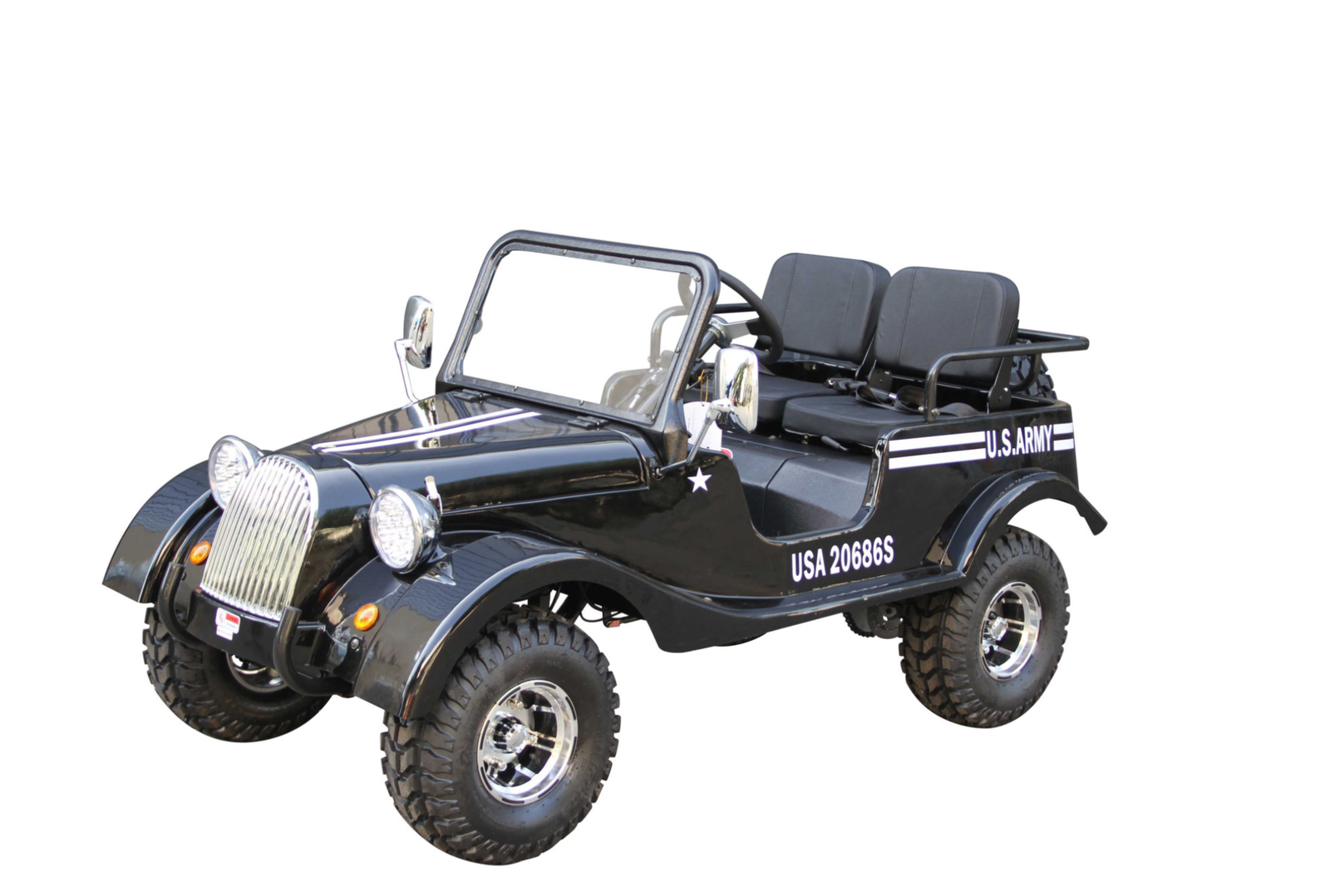

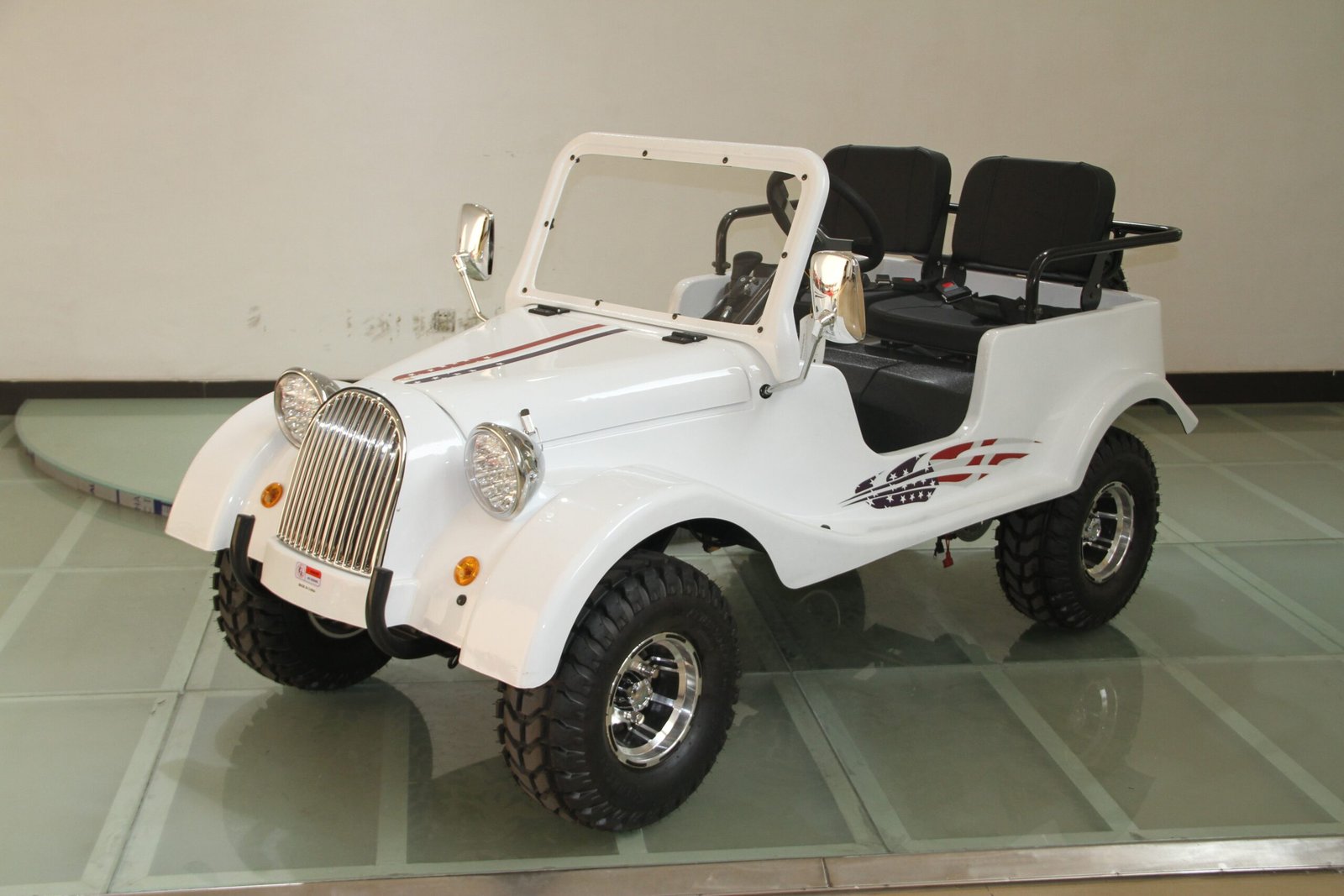

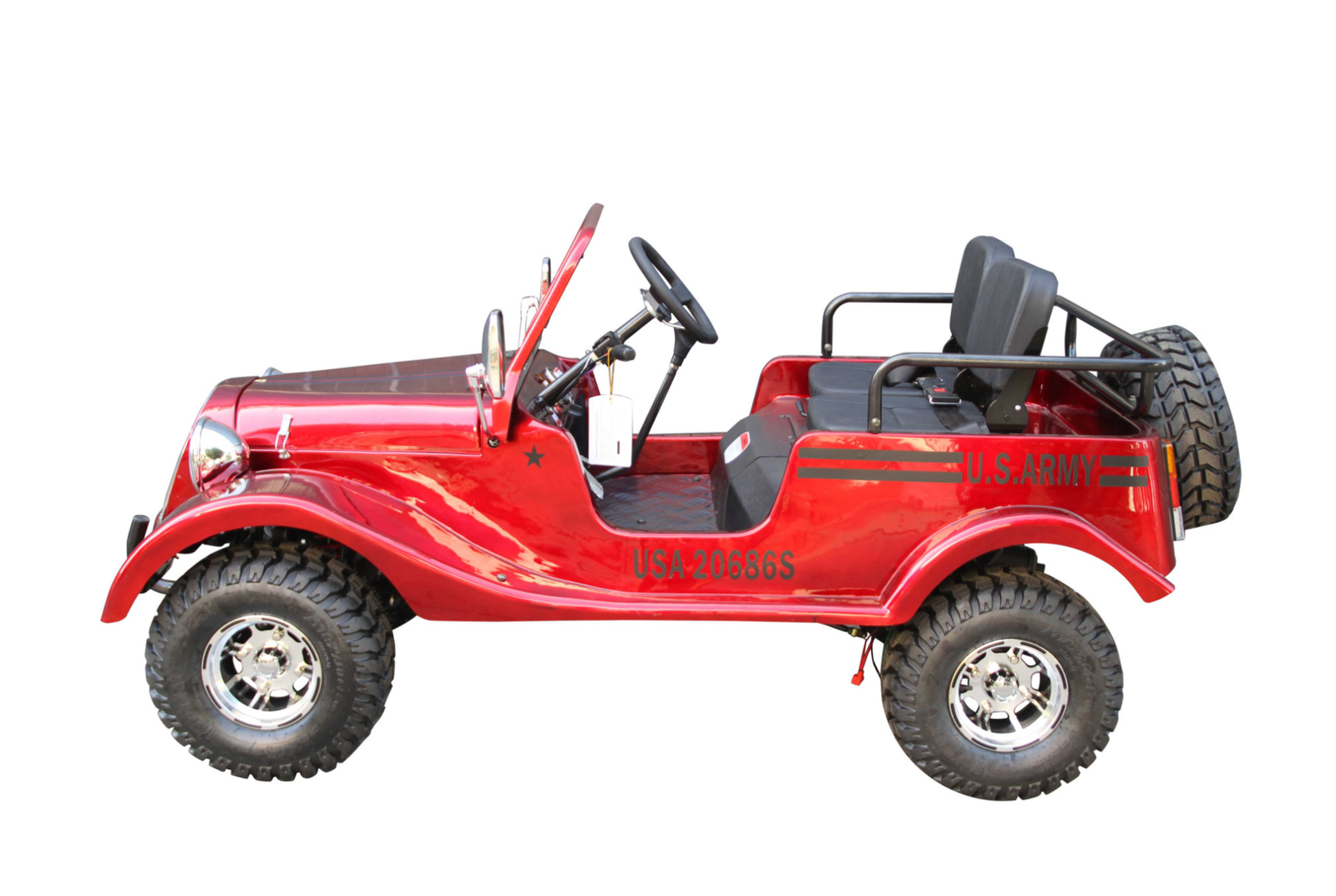

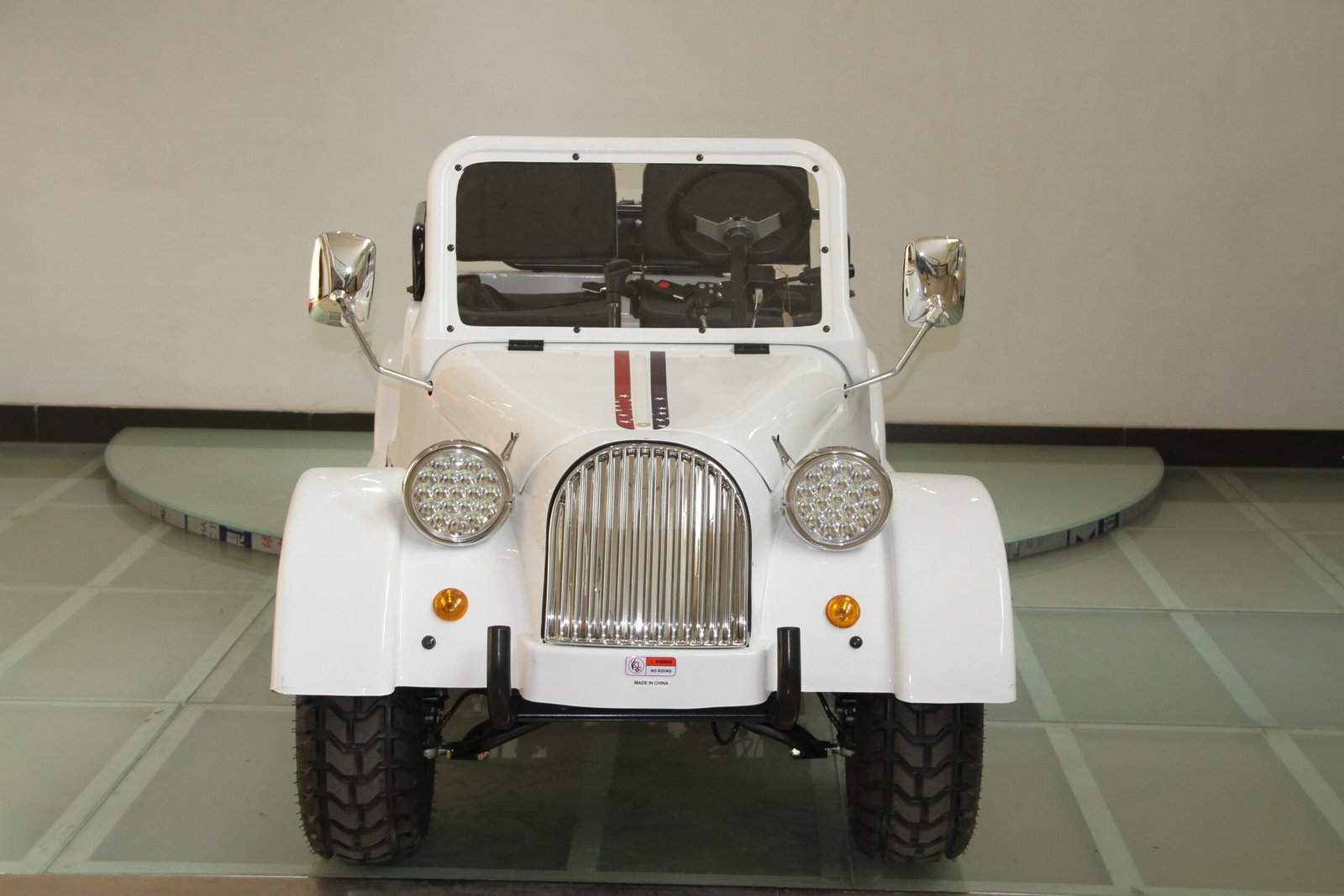

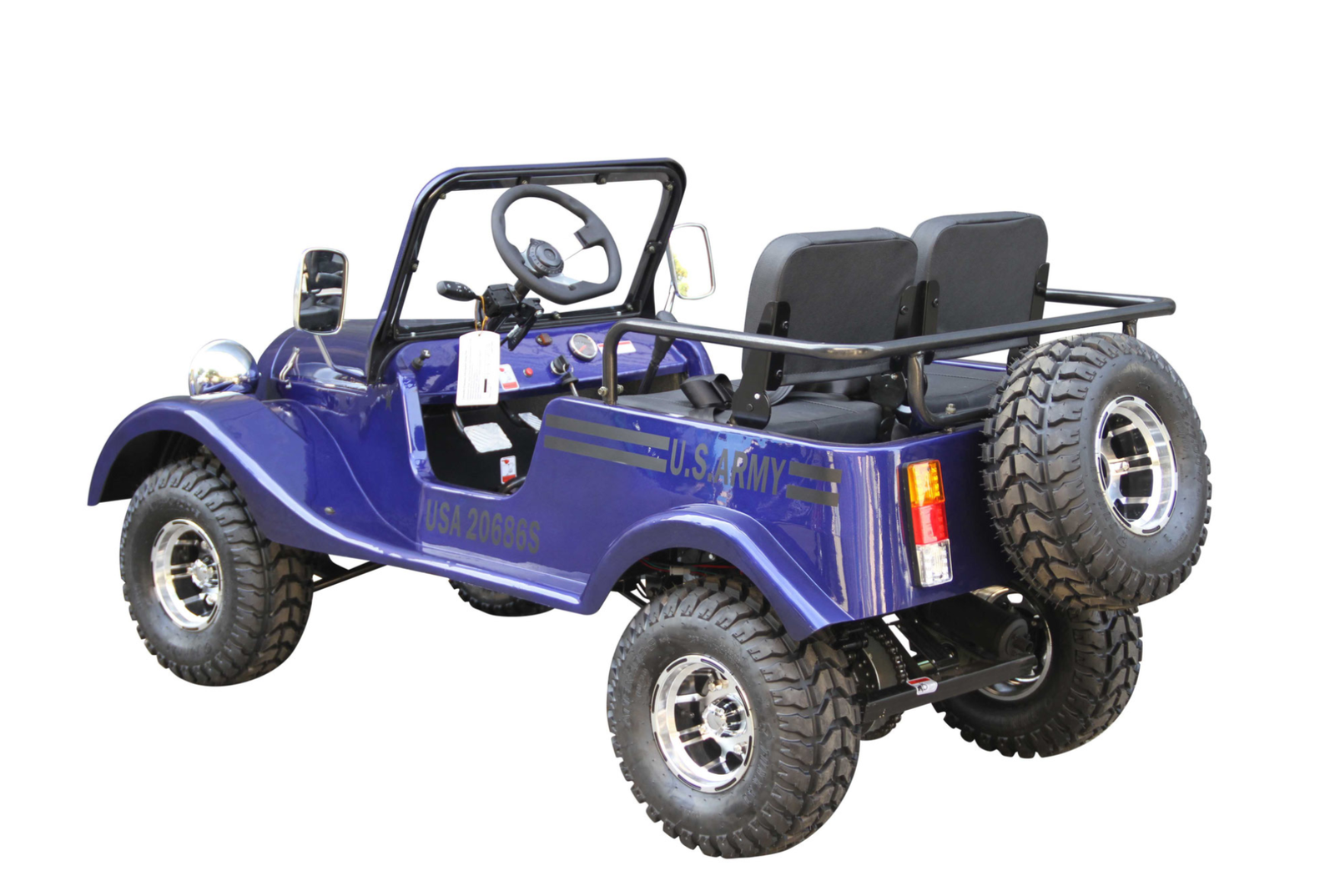

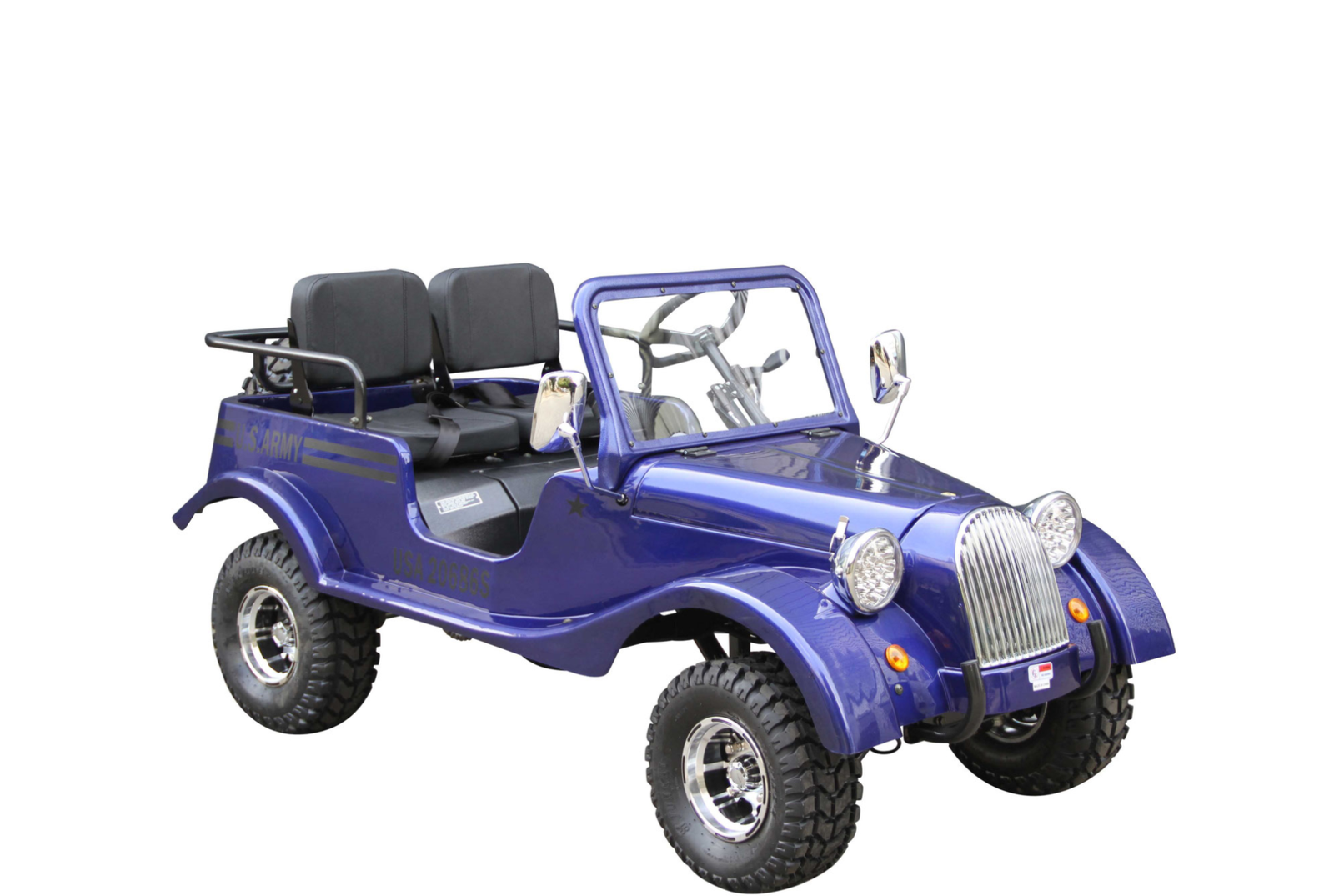

New for 2023 is an all-new classic Mini-Jeep in the style of the Scout. 150cc engine and heavier weight capacity, the unit includes a full-size spare tire, fully operational lights, blinkers, brake lights and reverse lights. LED headlights and side view mirrors.
This proven drive train will give hours of fun for kids and adults. Stylish and all new for 2023.
TECH SPECS
|
Model Name: GR-5
|
Engine
|
150cc
|
|
Transmission
|
3-speed with reverse
|
|
Drive type
|
Chain
|
|
Belt and or chain size
|
Chain: 530H 153L
|
|
Starter System
|
Electric
|
|
Fuel system
|
Gasoline, 1.06gal, carbureted
|
|
Brake (Front/Rear)
|
Disc/Disc
|
|
Tire size(Front/Rear)
|
18×7-8
|
|
Wheel size and type(Front/Rear)
|
8, Steel
|
|
Oil capacity and type (in liters)
|
0.8L, Air cooled motorcycle oil with clutch additive
|
|
Gear oil type and capacity (in liters)
|
N/A
|
|
Battery
|
12V9A
|
|
Light
|
Standard Lights
|
|
Suspension(Front/Rear)
|
dual A-arms front. swingarm rear
|
|
Dimensions (in inch)
|
Assembled(LxWxH): 78.74×35.43×29.13, Seat Height: 23.62, Wheelbase:51.18
|
|
Weight(net/gross/capacity)
|
330.7/363.8 lbs.
|
|
weight capacity
|
264.6 lbs.
|
|
Ground Clearance (in inch)
|
9.84
|
|
Assembly Require
|
Front and rear wheels, windshield, steering column, seat, spare tire holder, gas can holder, seat bars, seat belts, battery
|
|
Any special features
|
Include: windshield, spare tire
|
|
EPA/carb approved
|
EPA Approve
|
|
